05 Neuronal Ultrastructure

Technical Training: Nanoscale Connectomics

Session outcomes (60 minutes)

• Make compartment and synapse calls using multi-cue evidence chains.
• Assign confidence tiers (high, medium, uncertain) with explicit rationale.
• Separate unresolved ambiguity from incorrect labeling.

Pedagogical arc

• Model: expert think-aloud for one patch.
• Guided practice: easier then ambiguous cases.
• Consensus: resolve disagreements with rubric rules.
• Check: one fully justified call per learner.

Evidence language for this unit

• A label is a claim.
• A cue is evidence.
• Confidence is uncertainty metadata.
• Disagreement is signal about policy gaps.

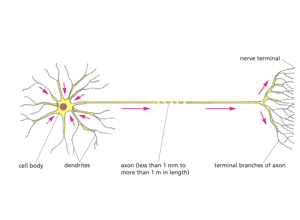

Visual grounding: compartment orientation

• Instructor move: ask learners for two independent cues before naming compartment.

Visual grounding: dendritic context

• Emphasize neighborhood context, not isolated texture patterns.

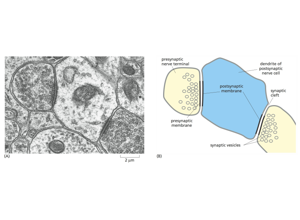

Synapse cue set

• Require membrane apposition + vesicle field + postsynaptic context.

Organelle-assisted disambiguation

• Use organelles to support or reject first-pass labels.

Comparative ambiguity case

• Teach explicit alternate hypothesis statement.

Advanced adjudication case

• Decision policy: escalate when cue conflict persists across slices.

Decision protocol (operational)

1. Propose candidate label.
2. Cite at least two independent cues.
3. Check adjacent-slice continuity.
4. Assign confidence tier and uncertainty note.
5. Escalate if evidence conflict remains.

Frequent failure modes

• Single-cue overconfidence.
• Contrast-only synapse calls.
• Ignoring z-context.
• Treating uncertainty as failure.

Teaching move: misconception correction loop

• Present one intentionally ambiguous patch.
• Collect independent labels.
• Debrief by evidence chain, not by authority.
• Update shared rubric wording.

Activity (12 min)

For two ambiguous patches, submit:

• label,
• two supporting cues,
• confidence tier,
• one alternative hypothesis considered.

Rubric checkpoint

• Pass: multi-cue evidence + confidence tag present.
• Strong: rationale includes cross-slice verification.
• Flag: definitive label with weak or single evidence source.

External paper figure integration

• Kasthuri et al. 2015 (Cell): dense cortical ultrastructure examples.
• Harris & Weinberg 2012 (Cold Spring Harb Perspect Biol): synapse ultrastructure schema.
• MICrONS publications: dataset-specific morphology exemplars.

External inserted figure (open license)

• Source URL: https://cdn.ncbi.nlm.nih.gov/pmc/blobs/65c5/524270/e8555fa5f4f3/pbio.0020329.g001.jpg
• License: CC BY (PLOS Biology open-access article, Denk & Horstmann 2004).

References and attribution

• Internal visuals: Pat Rivlin proofreading training set.
• Journal-club tie-ins:
  • https://doi.org/10.1016/j.cell.2015.06.054
  • https://doi.org/10.1101/cshperspect.a005587
